55Inches fully sealed outdoor advertising LED
55Inches fully sealed outdoor advertising LED
Quote Now
Main Features:

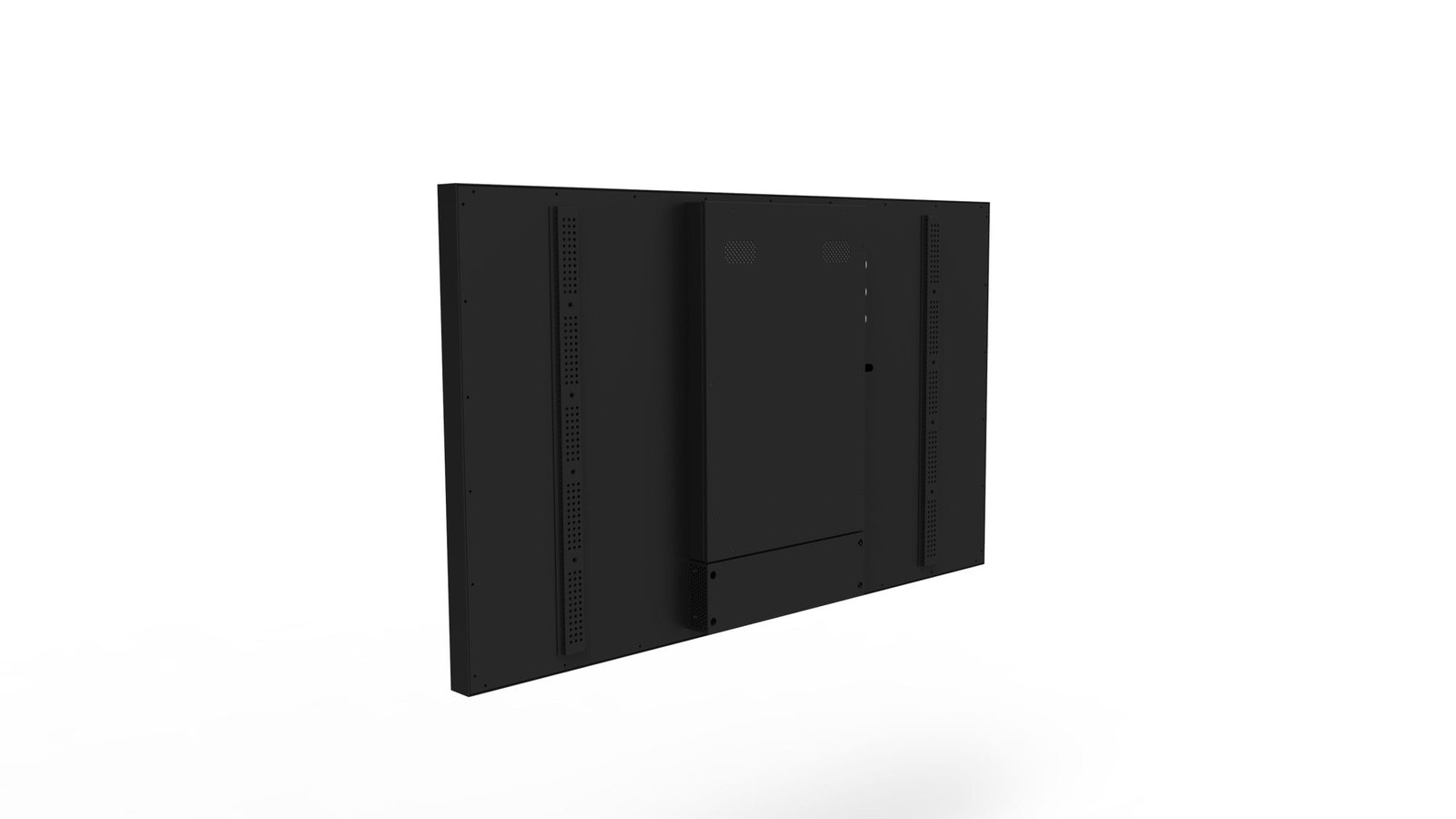

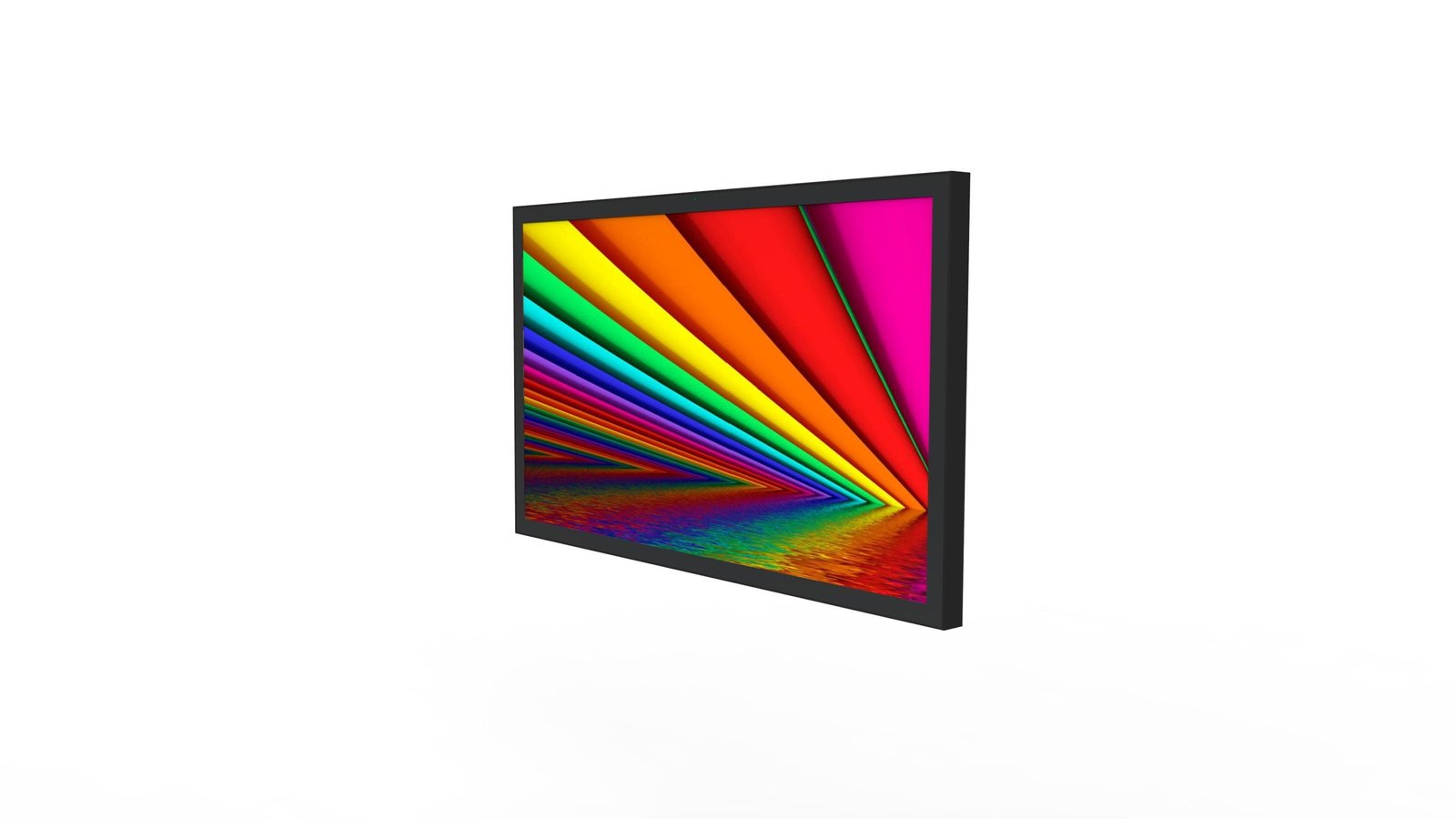

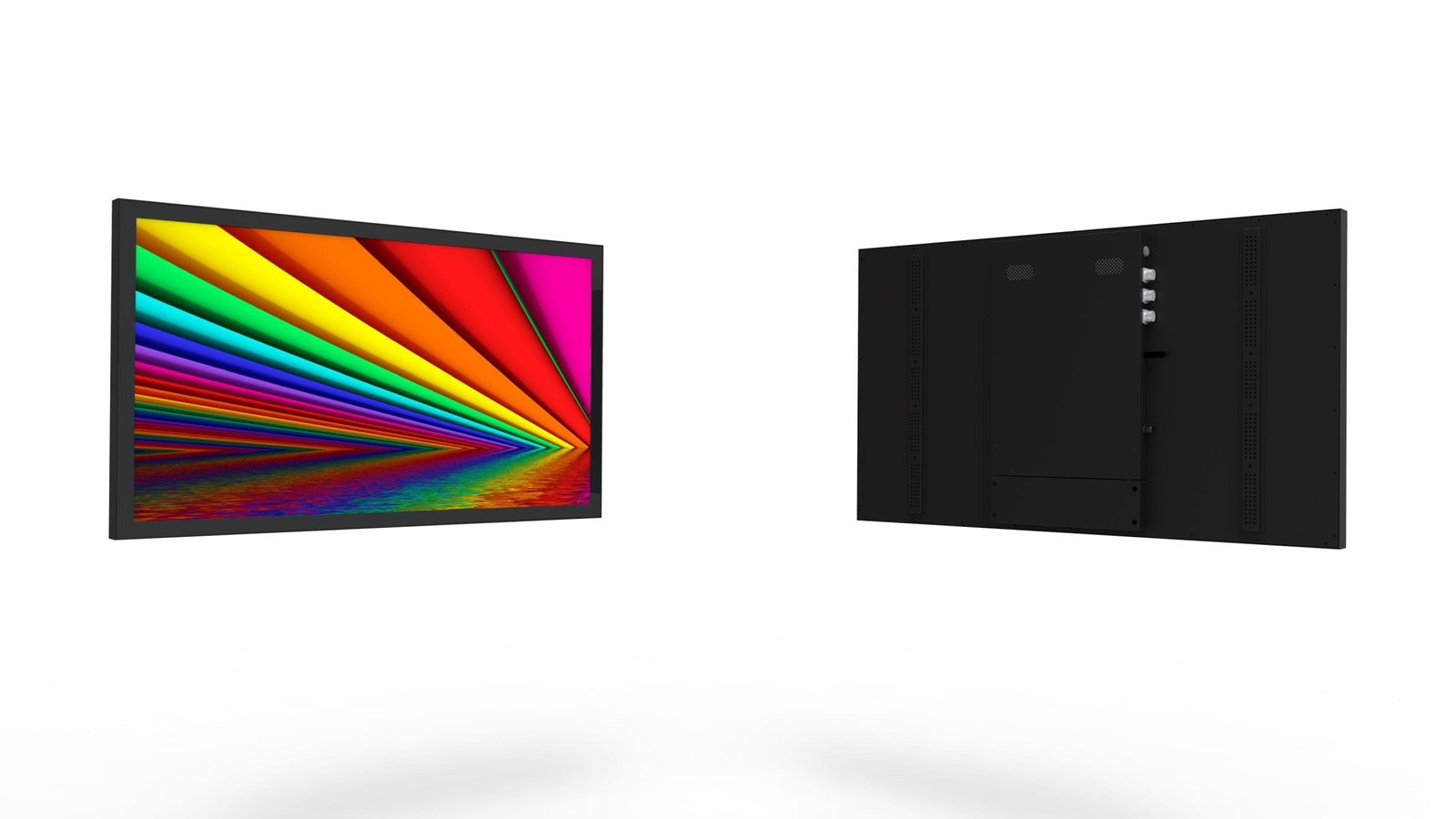

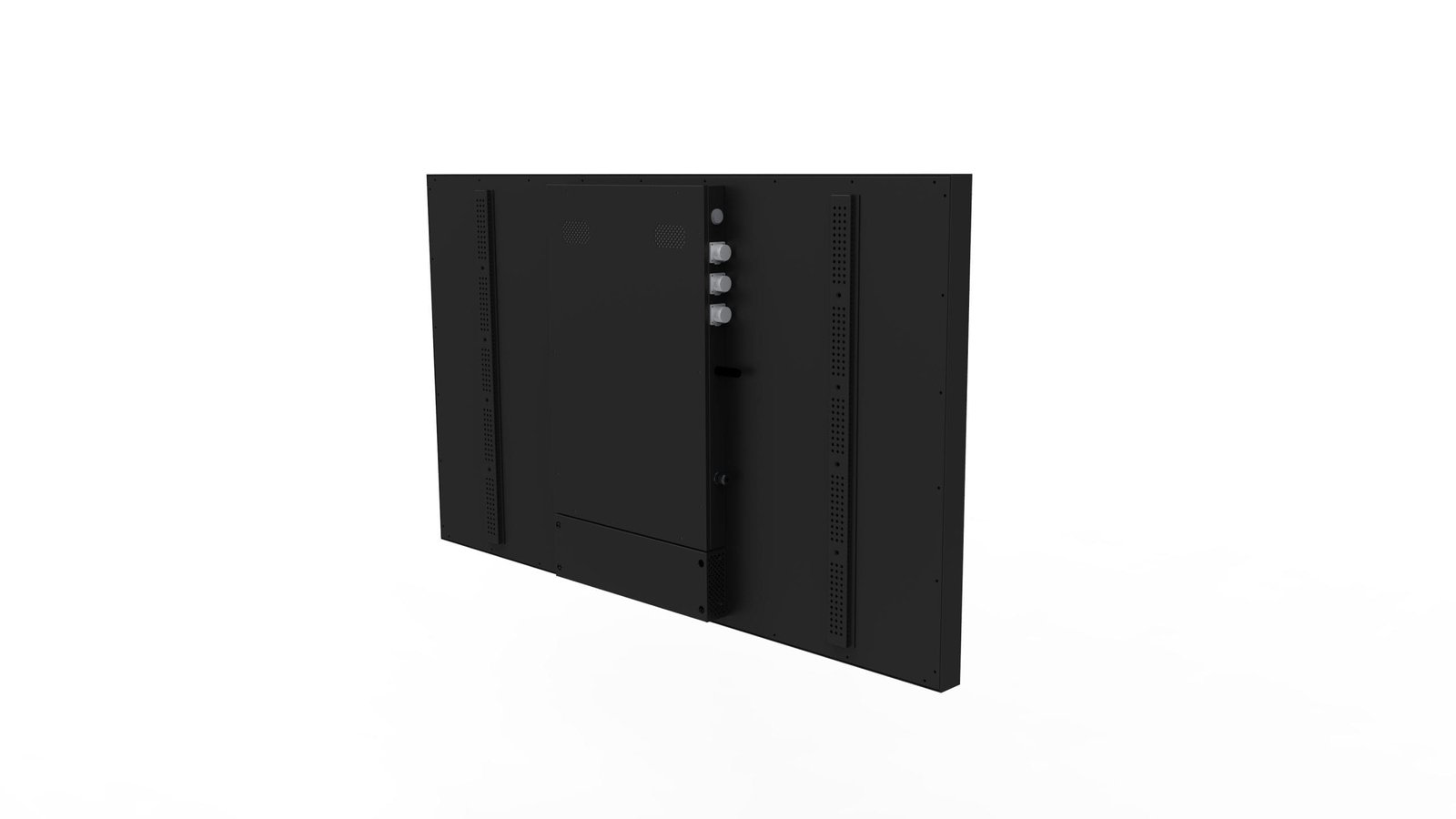

1.Structure of outdoor advertising LED
The 55-inch LG wide-temperature and high-brightness LCD screen is selected for the full bonding process.
The brightness requirement is 3000cd/㎡, with automatic ambient light sensing and tempered explosion-proof glass.
The internal structure is modular design, reinforced with reinforced ribs, the wiring is neat, the firmness of the whole machine can withstand 12 typhoons, the machine material adopts profile shell, and the painting process adopts double-layer outdoor powder spraying.
The whole machine adopts rain-proof, dust-proof, and sun-proof design, and is maintenance-free.
Functional requirements: it adopts industrial-grade Android motherboard, supports Wifi, RJ45 interface, 4G networking (optional), can control multiple or single devices, and supports full HD 1920×1080 decoding.
2.The characteristics of outdoor advertising LED
Model appearance: standard shell, according to customer needs, a variety of different appearances can be designed, the design is novel, the styles are diverse, and the high-end is extraordinary.
Timing backlight: Support backlight timing control for different time periods, and support optional working status from Monday to Sunday.
Dustproof and waterproof: The whole machine is designed to be closed to prevent external dust and water from entering the interior, which meets the IP66 level standard.
Sunscreen and explosion-proof: The shell is a profile shell, which has been treated by special outdoor powder painting, waterproof and sunscreen, anti-corrosion, and explosion-proof professional surface technology; it can be used outdoors for more than 10 years without fading.
High-definition highlight: high resolution, high contrast, high brightness, greatly improving the sense of layering of the picture, 16.7M colors, the picture is more natural and delicate.
Installation method: embedded installation, independent wall-mounted installation, horizontal screen, vertical screen installation compatible.
3.Application scenarios
Stores, pedestrian streets, shopping malls, hotels, squares, schools, parks, enterprises and institutions, communities, bus stations and many other scenes.
Specifications:
| Electrical Parameters | ||
| Shell | Shell material | The shell is made of customized profiles + aluminum. |
| Shell coating | The inner layer is sprayed with zinc-rich bottom powder, and the surface layer is sprayed with Aksu outdoor plastic powder for protection. | |
| Service life | The service life is guaranteed to be more than 10 years. | |
| Explosion-proof glass | Performance parameters | 6mm tempered glass, when the glass is damaged by an external force, the fragments will form small particles at an obtuse angle similar to a honeycomb, which is not easy to cause serious harm to the human body.The impact strength of tempered glass is 3 to 5 times that of ordinary glass, and the bending strength is 3 to 5 times that of ordinary glass. |
| Electronic control system | Timed power supply | Control the start and stop of the machine regularly in time and in weeks. |
| Power supply brand | Taiwan Mingwei industrial-grade power supply, stable and reliable power supply. | |
| Working environment | Ambient temperature | -30℃ to 50℃ |
| Ambient humidity | 5% to 90% | |
| Operating voltage | 220V | |
| Machine weight | Net weight | 34.5KG |
| Package size | Size | Length 1440*width 250*height 980mm |
