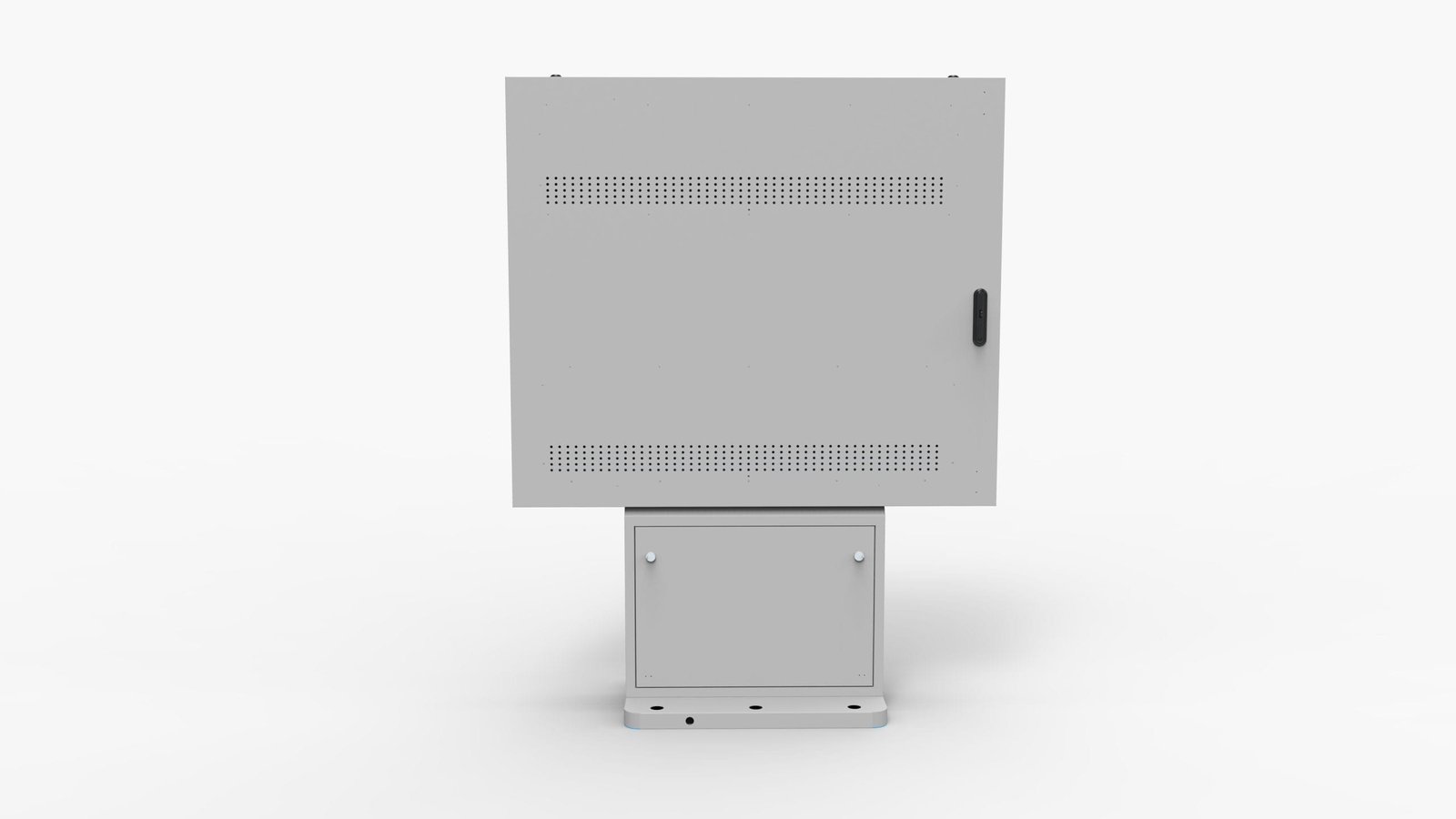

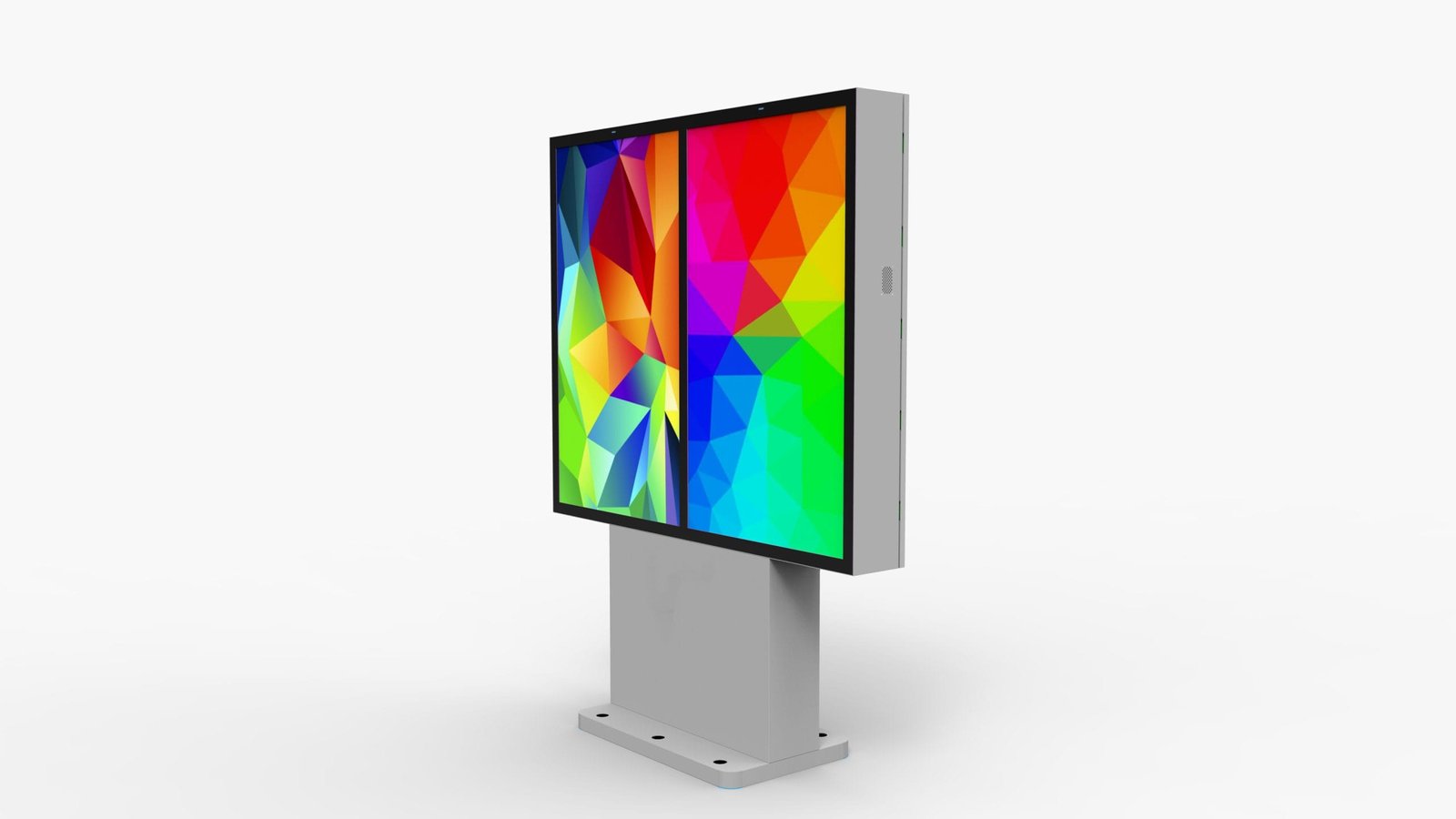

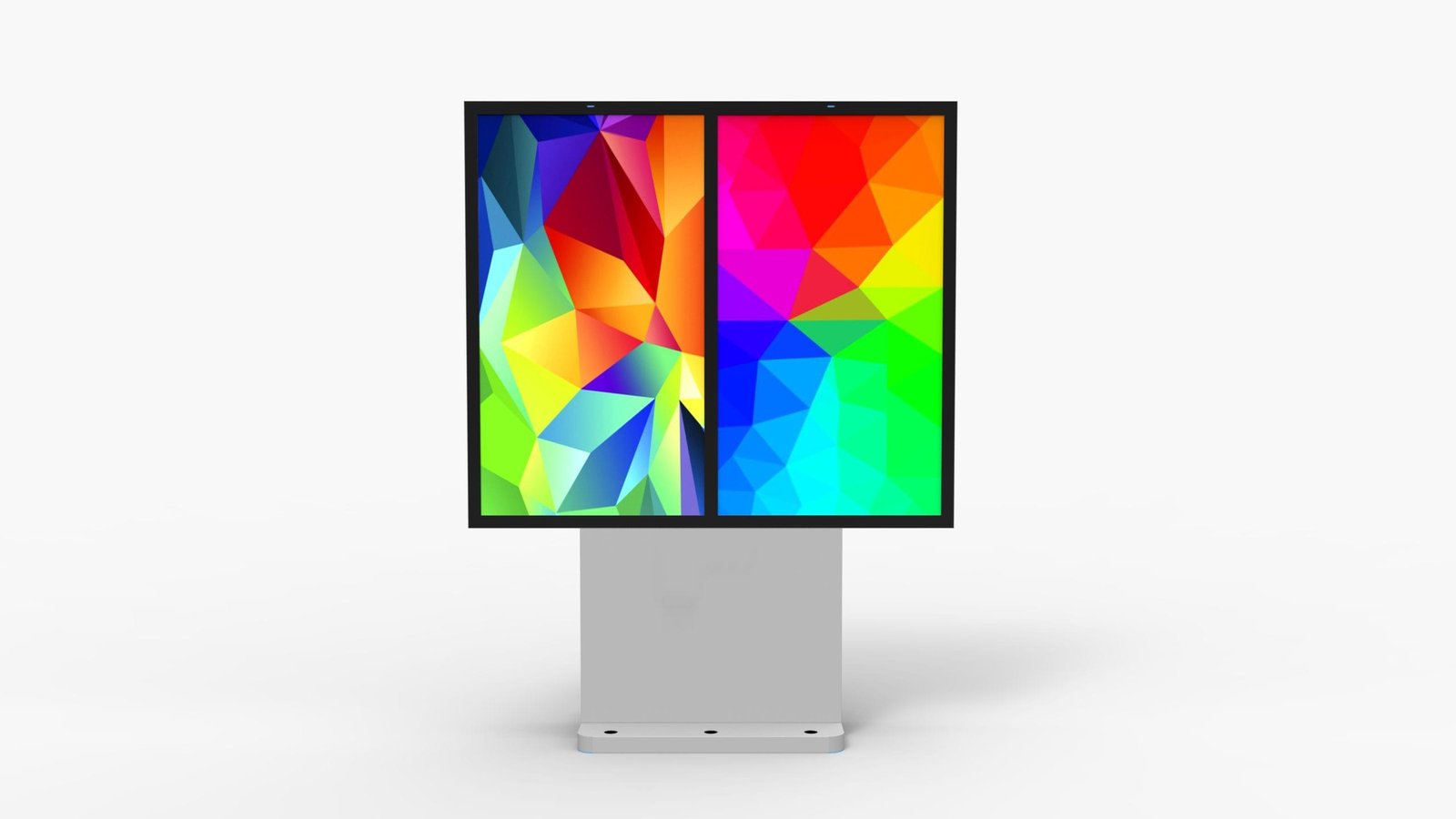

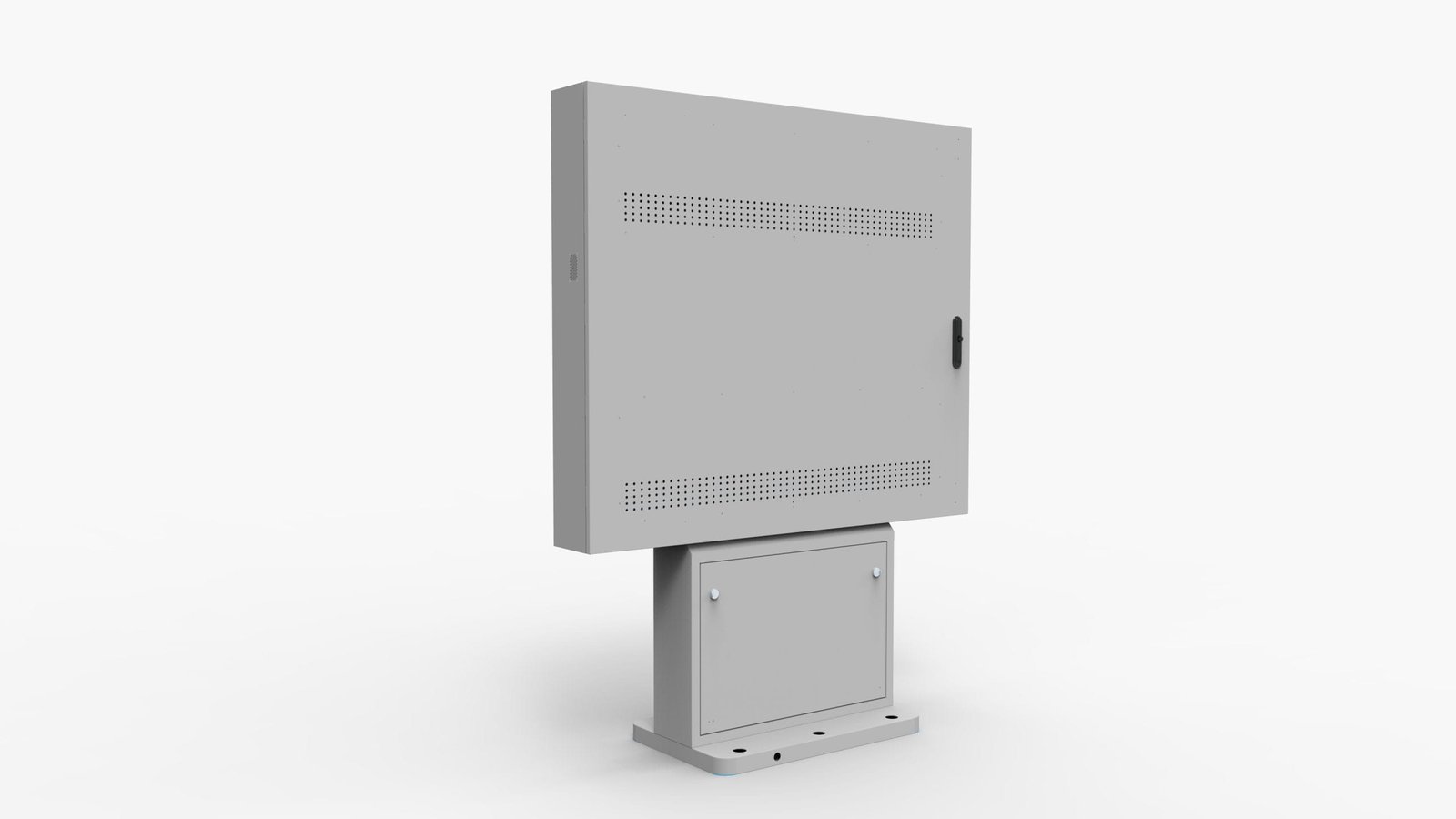

55 inch vertical outdoor advertising LED Display screen-FD55VG2A0

Main Feactures:

1.Outdoor advertising machine models

a.Choose a 55-inch high-brightness wide-temperature screen LCD screen.

B.The brightness requirement is 2000cd/㎡, with automatic ambient light sensing and tempered explosion-proof glass.

c.The internal structure is designed according to the requirements for reinforcement and reinforcement. The structure of the whole machine is firm and resistant to 12 typhoons. The material of the machine is galvanized steel plate, and the painting process adopts double-layer spraying of outdoor powder. Cement base + bolts are inserted into the base of the machine for fixing.

D.The whole machine adopts high-quality cooling fans for heat dissipation, plus lightning protection, overload, overvoltage, overcurrent, and over temperature protection equipment, and the structure adopts rainproof, dustproof, and sun-proof design.

E.Functional requirements: it adopts industrial-grade embedded Android motherboard, can support Wifi, RJ45 interface, 4G networking (optional), can support simultaneous control of all machines or single control of one, and supports full HD 1920×1080 decoding.

2.The characteristics of outdoor advertising machines

Fashionable appearance: standard shell, according to customer needs, professionally designed elegant and stylish shell, various styles, high-end and extraordinary；

Timing backlight: support 10 sets of time period timing backlight control, convenient and easy to operate；

Intelligent temperature control: Intelligent temperature control system to maintain a constant temperature and dry environment inside the fuselage to prevent fogging and condensation；

Dustproof and waterproof: The whole machine has a closed design to prevent external dust and water from entering the interior, which meets the IP55 standard.；

Sunscreen and explosion-proof: the shell is galvanized steel plate, which has been treated by special outdoor powder painting, waterproof and sunscreen, anti-corrosion, and explosion-proof professional surface technology; it can be used outdoors for up to 10 years without fading；

3.Product function introduction

1.Display module

(1) Adopts industrial-grade high-reliability modular design, which is easy to use, beautiful, simple and convenient to maintain, and complete protection measures.

(2) High resolution, high contrast, high brightness, greatly improve the sense of layering of the picture, and can better express the details.

(3) It has the function of automatically eliminating afterimages, anti-ultraviolet rays, heat insulation from sunlight, and automatic light-sensitive green energy-saving protection for long-term use of LCD screens.

(4) It has the adaptive function of black level extension to enhance the sense of depth of field layering of the image.

(5) Using industrial-grade LCD screens, the video images are brighter and the three-dimensional sense is stronger.

(6) 16.7M color, the picture is more natural, and the delicate picture is truly non-trailing.

(7) It has intelligent temperature control, environmental protection, mute, high reliability and good stability, especially suitable for working in harsh environments.

(8) Long life, 7*24 hours of uninterrupted work, up to more than 60,000 hours.

2.Electrical parameters

(1) The shell material is made of fully galvanized steel plate cabinet, the outer surface is imported metallic paint, anti-magnetic, anti-static, and imported waterproof materials. The whole machine adopts IP55 waterproof, outdoor all-weather waterproof and dustproof, anti-theft, explosion-proof and other designs.

(2) Highly reliable electrical protection: leakage, overload, overvoltage protection, lightning protection device, over temperature protection, etc.

(3) Audio: using a two-channel, stereo surround power amplifier system, the output power is 8 ohms 2×10W.

(4) The design standard of the working ambient temperature is +50°~-30°, and the cooling adopts a high-quality combination fan.

(5) Protective glass: 6mm tempered explosion-proof glass is used.

(6) Each system of the whole machine adopts the principle of modular design, and is designed for sustainability and maintainability.

(7) Machine fixing method: multiple M18-24 screw columns are poured from the ground, interspersed to the bottom of the machine and fixed with nuts.

(8) Light sensing and overheating protection system: The screen backlight adopts automatic ambient light sensing, and the screen brightness is adjusted in real time to meet the clear image display in the environment of strong direct sunlight, and the screen is not dazzling at night and energy is wasted.

Specifications:
